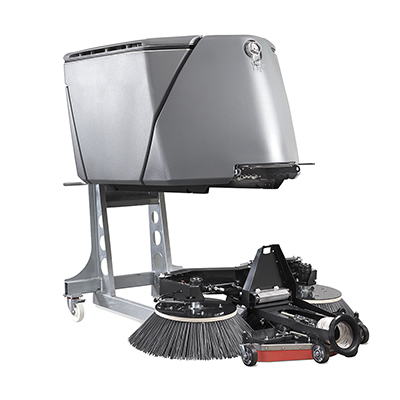

Egholm Suction Sweeper for City Ranger 3070

The Egholm suction sweeper for the City Ranger 3070 provides high suction performance and excellent manoeuvrability for cleaning the inner city.

The ergonomically designed cabin with 360 degree view of the surroundings and multifunction joystick makes it a joy to operate. With the ability to adapt suction width and strength to larger and heavier tasks as well as to smaller lighter tasks, the unique sweeping system has been designed for all inner city area.

Quick-shift attachment change in 1 minute and the water rotation filter principle to reduce dust are Egholm trademarks.

Features:

• Hopper - as standard the hopper has a rotation filter system and a fresh water tank with 190 l capacity.
• Front Brush Unit - the unit consists of a suction mouth and two front brushes with a water nozzle on each.
• Vacuum Sensor - monitors the flow through the suction hose and gives an indication if the suctions hose is clogged. With this feature, the collection can be optimized.
• Brush Pressure System - activating the hydraulic weight distribution makes the front brushes follow ground variations. In addition, the operator can control the brush pressure from the controls in the cabin. Being able to easily adjust the brush pressure to match the types and levels of debris allows the driver to drive with the lowest needed pressure on the brushes, and thereby reduce the wear on them. The system enhances performance and reduces operating costs.

Optional Equipment:

• 3rd Side Brush - the 3rd side brush is equipped with a spring-loaded and collision-proof function, increasing the service life of the brush while also safeguarding surrounding objects. The tipping function is controlled via the cabin joystick and the hydraulic system of the machine and can advantageously be activated when encountering depressions, gutters, kerbstones, and the like. With the 3rd side brush sweeping is possible at two levels: while the two front brushes sweep the road, the 3rd side brush can sweep the pavement.
• Wander Hose - handy for areas out of reach of the suction sweeper unit. With easy access, great mobility and excellent suction performance, cleaning tasks around park bins, benches, steps, tress and other obstacles can be done in no time and with good results. Specifications: 5 m x Ø150 mm.
• High Pressure Washer - a long and flexible high pressure hose and lance makes the cleaning of statues, park bins and benches easy. The lance is ergonomic and water amounts can be adjusted to conserve water. Specifications: 7.5 m hose, 100 bar and 10 l/min.
• Recirculation Water System - by choosing the recirculation water system, you can ensure a constant cleaning of the suction pipe while sweeping sticky material. 125 litre is recommended.
• Hopper Stand - the stand for attaching, detaching and storing the hopper allows you to attach/detach the hopper in just 1 minute supporting the multifunctionality of the machine.
• Wide-base Tyres - to improve the operator and driving comfort, whilst also reducing the ground pressure, we recommend wide-base tyres when using the suction sweeper. When wide-base tyres are mounted, the width of the basic machine is 1280 mm.
• Smaller Brushes - the suction sweeper is as standard equipped with Ø850 brushes. Smaller Ø570 brushes are optional.
